Online inquiry for laser cutting filter

Use our online inquiry form to place your request through our website at any time without any additional effort. Simply upload your manufacturing data to our server and deposit the material(s) you require.

Telephone consultation: +49 391 598184 70

Email: anfrage@teprosa.de

Materials for 2D laser cutting of filters

A wide variety of materials and materials are suitable for laser cutting and manufacturing of filters. Here is an overview of the materials we process at TEPROSA:
Sheets and foils – material thickness: 0.02 mm – 2.00 mm:

Stainless steel, stainless steel foils
Aluminum, aluminum foils
Copper, copper foils
Brass, brass foils
Nickel, nickel foils
Steel, steel foils

Other materials:

Ceramics (silicon nitride)
Plastic
Textiles

For a detailed overview of the most common materials and materials, it is worth taking a look at our materials overview.

Manufacturing conditions for laser cutting of filters

Minimum kerf width/minimum spot diameter: 0.03 mm*
Repeat accuracy ±2µm
Micro-bridges from 0.03 mm (small connection between contour and sheet to anchor the blanks in the sheet composite)
Cutting speeds up to 50mm/s
Cutting gas support up to 25 bar
Nitrogen
Oxygen
Compressed air
Contour accuracy: ± 0.01 mm*
Boring from 0.03 mm

*Depending on the material/material and its thickness.

Provide material or qualify for filter laser cutting

Your material is not included? Contact us. Our experts will be happy to advise you on material selection and technology options. If required, we will be happy to perform cutting tests with your material of choice and provide you with a professional assessment of the suitability for laser processing of your material.

Information for buyers

As a service provider for the B2B sector, it is a matter of course for us to provide you with a written offer that matches your inquiry in accordance with our general terms and conditions. Of course, we will also act as a long-term supplier for you. Here you will find further links and helpful information for buyers:

Request without CAD data

You can also place a request for filter laser cutting online without CAD data. To do so, simply enter the geometric data, as well as the desired material of your workpiece into our online request form. Our experts will check your data and then contact you immediately to provide you with an attractive manufacturing offer as quickly as possible.

Confidentiality & Data security

We guarantee the security of your data – if you still need a non-disclosure agreement in advance, you can download our non-disclosure form here. We would also be happy to review your in-house agreement. To do so, please simply email it to us at: einkauf@teprosa.de

Short delivery times – optional express processing

We have many materials different material thicknesses for filter laser cutting available in stock. So we are able to process your laser request within shortest time. We manufacture from batch size one and offer optional express processing for many orders already within one working day.

Express processing, optionally within one working day
Large batches > 1 million parts/year
Prototypes from quantity 1
Special materials available at short notice on request

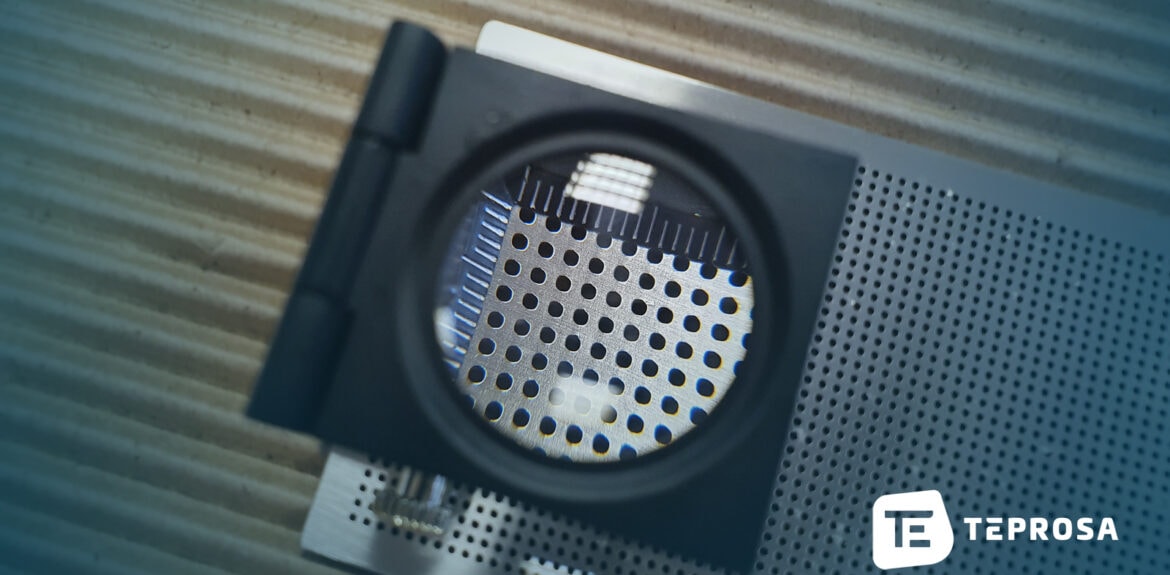

Laser cutting the finest metal filters

The laser cutting process is ideal for producing particularly fine metallic filters, microfilters, microsieves, stainless steel microsieves, or nozzle plates for atomizing liquids. CO2 laser systems can even be used to laser cut materials such as nonwoven or foam filter mats.

Your supplier for laser cutting of metallic filters

TEPROSA is your specialist for laser cutting and laser engraving with many years of experience. We manufacture sophisticated parts for the automotive industry, medical technology, mechanical engineering and many other industries. We will be happy to advise you on all questions concerning your laser order. As a long-standing supplier to various OEMs, the quality of our work is particularly important to us. Therefore, we work according to uniform processes and thus ensure consistent quality and complete traceability of each individual production step.

Accuracy in laser cutting of metallic filters

Using the appropriate cutting gases, the precise laser beam guidance, high laser power and a high cutting speed enable highly precise contour accuracies of ± 0.01 mm, exact, almost right-angled cut edges and clean cut surfaces. Depending on the material thickness, narrow kerfs of 0.03 mm are also possible.

Quality of our blanks

Laser cutting is characterized by excellent quality of the workpieces produced. The laser beam of laser cutting machines is focused on a diameter of 0.03 mm, which enables relatively narrow kerfs compared to other cutting processes. Edge quality and cut quality of the laser parts produced in this way are many times more accurate than comparable processes. Thus, we realize high dimensional accuracy, exact repeatability and contour accuracy of ± 0.01 mm during laser cutting.

Filter post-processing

Depending on the material, material thickness and laser process, laser processing results in residues on the cut surfaces of the filters, such as chemical reactions caused by contact between the laser beam and the material. While laser cutting of thin metals and metal foils produces very little, if any, burr. However, when processing thicker material, some burr formation is to be expected.

We can offer the following post-processing options:

Brushing
Trowalizing (vibratory finishing)
Electropolishing

Advantages of laser cutting

High cut and edge quality
Repeatability, dimensional accuracy and contour accuracies of ± 0.01 mm depending on material thickness
Clean cut surfaces
High cutting speeds

Laser cutting filters
